OMNIC — Global Smart Logistics & Automated Retail HMI Ecosystem
ROLE: Lead HMI & IoT Systems Architect
DOMAIN: Self-Service Kiosks, Automated Parcel Lockers (APL),
Smart Retail/Vending, B2B Fleet Management
SCOPE: Multi-Device Touch HMI + Enterprise Control Platform (B2B SaaS) +
Hardware-in-the-Loop Validation
DEPLOYMENT: 22,000+ Physical Terminal Nodes (European & Middle Eastern Postal Networks, including Georgian Post, Polish Post, Hungarian Post, UAE Logistics)

Executive Overview & System Architecture
Architected the end-to-end HMI and interaction framework for OMNIC’s global self-service hardware ecosystem—a unified network of automated parcel lockers, temperature-controlled vending systems (OMNI Fresh / Food), and self-checkout kiosks.
The project spanned two interconnected operational layers:
-
Physical Terminal HMI Layer: Daylight-optimized, high-reliability touch interfaces engineered for high-frequency consumer transactions and rapid courier batch-loading.
-
Enterprise Fleet Operations Platform (B2B SaaS): A centralized telemetry, monitoring, and management system enabling national postal operators and fleet dispatchers to track cell availability, monitor hardware sensor health, and manage remote node configurations in real time.
Working directly on-site at the R&D and manufacturing facility in Kyiv, Ukraine, the engineering process bridged physical mechanical constraints, embedded firmware logic, and software interface design through continuous Hardware-in-the-Loop (HIL) validation.
Physical Hardware Fleet & Environmental Constraints
Engineered specialized interaction models tailored to diverse physical hardware form factors, outdoor installation parameters, and multi-modal peripheral integration:
-

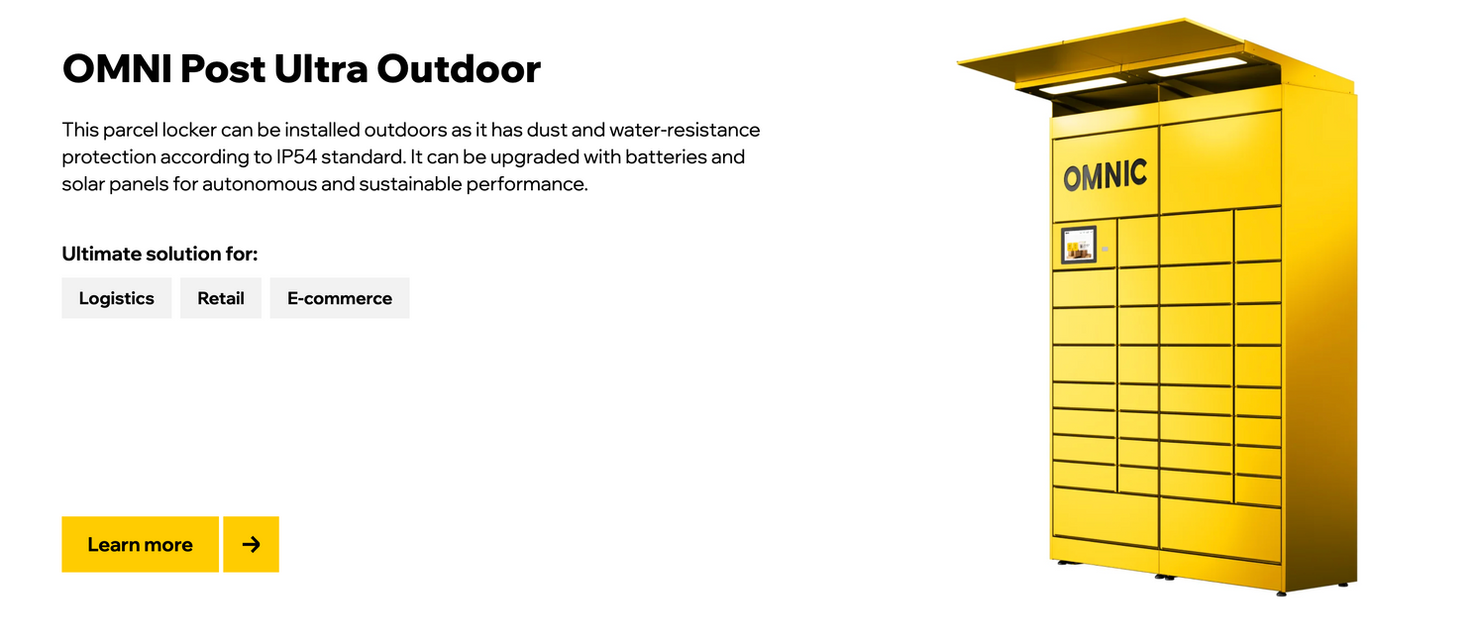

Automated Parcel Lockers (Standard & Modular APL): High-throughput touch terminals integrated with physical barcode/QR scanners, receipt printers, and automated cell door solenoids.
-
Temperature-Controlled Vending & Micro-Markets (OMNI Fresh / Food / Frozen): Touchscreen HMIs interfaced with internal temperature sensors, cooling hardware controllers, and electronic latching mechanisms.
-
Ultra-Compact & High-Density Lockers (OMNI Mini / Max / Solar): Scaled touch layouts optimized for compact 10-inch to 21.5-inch displays, including low-power solar-driven outdoor nodes.
Core Architectural & HFE Guiding Principles
To ensure zero-error physical interaction across diverse global demographics and environmental conditions, four system-level design principles were established:
-
Sub-5-Second Transaction Velocity: Every consumer interaction path (pickup, drop-off, payment) is streamlined to require minimal cognitive steps, ensuring rapid throughput at high-density transit hubs.
-
Environmental & Photometric Resilience: High-contrast, daylight-legible UI architectures designed to eliminate screen glare wash-out, maintain visual hierarchy under direct sunlight, and perform reliably on anti-vandal capacitive touch surfaces.
-
Dual-Persona Workflow Isolation: Strict separation between End-Consumer flows (ultra-simple, guided, multi-language) and Courier/Maintenance flows (high-density, multi-cell batch operations, hardware diagnostic overrides).
-
Multi-Brand & Multi-Locale Scalability: Tokenized, white-label HMI architecture supporting dynamic tenant re-skinning and full internationalization—including Right-to-Left (RTL) layout logic for Middle Eastern deployments.
Consulting Group provides automated customer oriented IoT solutions to growth of companies in both B2C and B2B with industry. The company's services include call centers, innovation on demand, service, and support for logistics, retail, FMCG, and HoReCa industries.
Since 2013, the Omnic team has developed 20+ self-service solutions for automation and installed over 22 500 parcel locker worldwide.
Engineering Audit, Physical Constraints &
Problem Statement
1. Environmental & Physical Hardware Vulnerabilities
Deploying a global network of self-service hardware nodes across diverse geographic and climatic zones exposed critical physical interaction bottlenecks. The legacy kiosk interfaces operated on unstandardized UI components, creating operational friction for both consumers and logistics personnel:
-
Direct Solar Glare & Photometric Failures: Terminal displays installed outdoors experienced severe screen wash-out under direct sunlight. Low-contrast UI elements and small typography rendered pickup codes and status messages illegible, forcing consumers to stall at the kiosk or abandon transactions.
-
Gloved & Multi-Modal Touch Imperfections: In cold-weather regions (Eastern Europe), users interacting with capacitive touchscreens while wearing heavy gloves experienced high touch-misregistration rates. Essential call-to-action buttons (PIN entry, screen confirmation) lacked calibrated hit-boxes and tactile visual feedback.
-
Physical Ergonomics & Accessibility Barriers: Physical locker heights varied across modular configurations (from low ground units to 2.2-meter high cells). The software lacked dynamic visual mapping to guide users to their assigned cell location, creating physical reach confusion and extending transaction dwell time.
-
Peripheral Hardware Latency & State Mismatches: Optical QR/barcode scanners, receipt printers, and solenoids experienced asynchronous response lags. The absence of real-time visual hardware status indicators led users to scan codes repeatedly or force open locker doors, causing physical latch jams and unnecessary support dispatches.
2. Enterprise Fleet Management & Operational Friction (Back-Office B2B)
Prior to the platform redesign, regional postal operators and service technicians managed hardware networks through fragmented, legacy administration tools. This created severe operational overhead:
-
Opaque Hardware Status Visibility: Fleet operators lacked real-time diagnostic telemetry for individual kiosk nodes. Critical hardware failures—such as jammed door actuators, disconnected card readers, or failed climate control units in OMNI Fresh/Food vending lockers—were discovered only after consumer complaints.
-
High Courier Dwell Time During Batch Operations: Field couriers loading or retrieving dozens of parcels per location were forced through repetitive, single-item authorization screens. This inefficient workflow increased courier dwell time at the terminal by up to 40%, creating logistics bottlenecks during peak delivery hours.
-
Multi-Market Localization Barriers: Scaling the hardware platform into international markets (Georgia, Hungary, Poland, UAE) was hindered by hard-coded layout architectures. The software could not dynamically handle Right-to-Left (RTL) text logic, regional currency display rules, or multi-tenant B2B white-labeling without requiring complete front-end rewrites.
3. Systemic Remediation Framework
To transform OMNIC’s hardware-software ecosystem from a localized utility into an internationally scalable, high-reliability platform, a four-point engineering directive was executed:
-
Re-architect the Kiosk HMI: Standardize touchscreen interaction mechanics across all display sizes (10" to 21.5") with touch-first target sizing, daylight-resilient contrast, and real-time peripheral state feedback.
-
Build a Centralized B2B Fleet Management Platform: Engineer a unified SaaS dashboard providing real-time hardware telemetry, cell-level occupancy tracking, automated fault detection, and remote firmware/configuration management.
-
Optimize Courier Throughput: Design a dedicated, high-speed HMI mode for logistics personnel, enabling multi-cell batch scanning and instant door unlocking to minimize courier terminal dwell time.
-
Standardize a Global Multi-Tenant Design System: Establish a tokenized, white-label HMI design system supporting instant brand re-skinning and multi-language/RTL localization for rapid market entry across Europe and the Middle East.

Key Architectural Decisions & Quantitative Global Impact
Key Architectural & HFE Decisions
-
Hardware-in-the-Loop (HIL) Micro-Interaction Standards:
-
Decision: Engineered synchronous visual, auditory, and haptic feedback loops triggered instantly upon physical barcode scans or door solenoid releases.
-
Rationale: Physical hardware latencies (e.g., mechanical latch delays or optical scanner read times) cause user hesitation and repeated inputs. Immediate, zero-latency micro-interactions on the HMI surface confirm hardware state changes in real time, preventing physical latch jams and reducing user error.
-
-
Dual-Persona Workflow Separation (Consumer vs. Logistics):
-
Decision: Implemented strict operational mode separation on the same terminal hardware—a streamlined, ultra-simple consumer interface and a high-density, multi-cell batch processing mode for couriers.
-
Rationale: Mixing consumer and courier interaction paradigms creates cognitive overhead and slows terminal operations. By isolating courier workflows into a dedicated batch-loading screen, logistics personnel can process dozens of parcels sequentially in a fraction of the time, drastically reducing terminal occupancy during peak delivery windows.
-
-
Tokenized White-Label & RTL-Ready Design System:
-
Decision: Architected a fully tokenized HMI design system with dynamic Right-to-Left (RTL) layout mirroring and localized currency/date formatting.
-
Rationale: Hard-coded UI structures prevent rapid international deployment. A tokenized, white-label component architecture enabled enterprise B2B buyers (national postal services) to re-skin terminals instantly while supporting multi-lingual international expansion across Europe, Central Asia, and the Middle East without custom front-end builds.
-
Quantitative System & Business Impact
The end-to-end HMI redesign, B2B fleet platform development, and hardware-software standardization transformed OMNIC’s product suite into an internationally deployed enterprise ecosystem:
Operational Throughput & Terminal Efficiency
-
Sub-5-Second Consumer Pickup Velocity: Reduced average consumer parcel pickup transaction times to under 5 seconds through high-contrast touch sizing, guided optical scanning, and intuitive PIN input workflows.
-
~40% Reduction in Courier Terminal Dwell Time: Accelerated courier deposit and retrieval cycles via high-speed batch-loading workflows, significantly increasing daily parcel throughput per locker node.
-
Streamlined Multi-Temperature Retail (OMNI Fresh / Food): Successfully expanded system capabilities beyond traditional postal lockers to climate-controlled automated vending, enabling seamless automated retail operations.
B2B Fleet Management & Customer Support Optimization
-
Over 50% Increase in Automated Diagnostic Inquiry Efficiency: The centralized B2B Fleet Management Platform provided call centers and field technicians with precise, real-time hardware telemetry (lock state, temperature sensor logs, connection health), resolving node issues proactively and dramatically improving support team productivity.
-
Drastic Reduction in On-Site Maintenance Dispatches: Automated fault detection and remote firmware management allowed dispatchers to reset door actuators and resolve software glitches remotely without sending physical service crews to the field.
Global Market Expansion & Business Growth
-
Deployment Across 10,000+ Global Hardware Nodes: Successfully scaled the HMI and fleet platform across national postal networks and logistics operators in Georgia, Kazakhstan, Poland, Hungary, and the UAE (including Georgian Post, Polish Post, and Hungarian Post).
-
Enterprise White-Label Scalability: The unified hardware-software architecture elevated OMNIC into an international market leader in self-service automation, driving exponential commercial adoption and cementing its position as a premier global IoT logistics provider.



Why Industrial HMI Doesn’t Look Like a Dribbble Shot
Targeting physical resilience over visual trendiness:
Outdoor capacitive touchscreens, anti-vandal protective glass, and low-cost embedded processors impose harsh constraints. High-contrast monochrome palettes, oversized target boundaries ($64\text{px}+$), zero transparency, and flat UI primitives were heavy architectural choices required to guarantee 100% legibility under direct solar glare and zero touch-misregistration during winter gloved use.

TESTING EXAMPLES
HMI QUALIFICATION & FIELD ACCEPTANCE PROTOCOL (PAT)
Document ID: HMI-TEST-APL-2026-V4
Project: Autonomous Parcel Locker (APL) Terminal Operating System
Scope: Poczta Polska / Magyar Posta / OMNIC Network Deployments
Author: Lead HMI & IoT Systems Architect
Standards Compliance: ISO 9241-210 (Ergonomics), ISO 9241-910 (Tactile/Haptic Interactions), EN 301 549 / WCAG 2.1 AA (Accessibility)
DOCUMENT ID: HMI-TEST-APL-2026-V4
PROJECT: Autonomous Parcel Locker (APL) Terminal Operating System
SCOPE: Poczta Polska / Magyar Posta / OMNIC Network Deployments
AUTHOR: Lead HMI & IoT Systems Architect
STANDARDS COMPLIANCE: ISO 9241-210 (Ergonomics), ISO 9241-910 (Tactile/Haptic Interactions), EN 301 549 / WCAG 2.1 AA (Accessibility)
1. HARDWARE MATRIX & DISPLAY SPECIFICATIONS
Validation testing is executed across three primary industrial touchscreen panel configurations deployed across the hardware network:
-
Node A (Compact Outdoor Unit): 10.1'' diagonal display (1280 × 800 resolution, 16:10 aspect ratio), Industrial PCAP technology with 4mm Vandal-Proof Glass, 1,000 nits display luminance, EETI / ILITEK Serial-over-USB touch controller, rated for extreme outdoor environments (-30°C to +65°C under direct sunlight).
-
Node B (Standard APL Master Terminal): 15.6'' diagonal display (1920 × 1080 resolution, 16:9 aspect ratio), Projected Capacitive panel with IK09 Impact Resistance rating, 700 nits display luminance, EETI EXC3000 Multi-Touch controller, rated for standard outdoor environments (-20°C to +50°C).
-
Node C (Kiosk / Fresh Vending Hub): 21.5'' diagonal display (1920 × 1080 resolution, 16:9 aspect ratio), Optical / IR Touch Grid, 450 nits display luminance, Standard HID-Compliant USB touch controller, designed for indoor and covered semi-outdoor logistics hubs.
2. CORE USER JOURNEY & INTERACTION WORKFLOW
Primary Test Scenario: High-Throughput Parcel Retrieval via QR Code or PIN Code (Pickup Workflow)
-
Idle / Standby Screen: User initiates interaction via direct QR code scanning using the optical barcode engine or by tapping the primary "Retrieve Parcel" target on the display (1000mm reach height).
-
Identity & Authorization Verification: Numerical entry of a 6-digit access PIN and the last 4 digits of the registered phone number using the dynamic high-contrast touch keypad.
-
Hardware Actuation & State Locking: Real-time visual confirmation on the HMI surface coupled with physical signal transmission to release the designated cell door solenoid lock.
-
Physical Retrieval & Session Closure: Parcel removal guided by visual cell location indicators mapped onto the terminal schematic, door closure verification, and automated session termination.
3. COMPREHENSIVE TEST SUITE & PASS/FAIL METRICS
Suite A: Photometric & Optical Resilience
-
TC-OPT-01: Direct Solar Glare Test
-
Environmental Hazard: Direct sunlight exposure (80,000 lux to 100,000 lux) targeted at a 45° angle relative to the screen surface.
-
Execution Methodology: Measurement of luminance contrast ratios across active UI elements using a calibrated spot photometer.
-
Acceptance Threshold (Pass Criteria): Luminance contrast ratio must equal or exceed 7:1 (WCAG 2.1 AA level compliance). Complete elimination of critical interactive elements rendered in grey or low-contrast visual gradients.
-
-
TC-OPT-02: Polarized Sunglasses Visibility Test
-
Environmental Hazard: Users operating the kiosk display while wearing polarized optical lenses.
-
Execution Methodology: Readability and visual acuity audit performed across viewing angles of 30°, 60°, and 90°.
-
Acceptance Threshold (Pass Criteria): Zero screen blackout or visual distortion (anti-glare filter and quarter-wave retarder film fully functional).
-
Suite B: Touchscreen Physical Calibration & Ergonomic Resilience
-
TC-TCH-01: Winter Gloved Touch Input Test
-
Human Factor / Physical Constraint: Operation using heavy leather and neoprene thermal gloves during cold weather conditions.
-
Execution Methodology: 50 consecutive PIN entry sequences executed in gloved mode at an ambient temperature of -15°C.
-
Acceptance Threshold (Pass Criteria): Minimum touch target boundaries enforced at ≥ 64 × 64 px (18 × 18mm physical area). Active hitbox buffer configured with a +12px padding zone. Total touch misregistration error rate must remain below 2%.
-
-
TC-TCH-02: Surface Water & Ice Interference Test
-
Human Factor / Physical Constraint: Water film condensation and active rain droplets accumulated on the protective PCAP glass surface.
-
Execution Methodology: Controlled water spray applied directly across the onscreen keypad during active touch input.
-
Acceptance Threshold (Pass Criteria): Zero ghost touches recorded. Touch controller firmware must successfully reject multi-point water droplet interference without locking input.
-
-
TC-TCH-03: Anti-Vandal Glass Parallax Drag Test
-
Human Factor / Physical Constraint: Physical offset caused by 4mm to 6mm tempered protective glass layers.
-
Execution Methodology: Touch target hit accuracy evaluated from side viewing angles up to 45°.
-
Acceptance Threshold (Pass Criteria): Parallax offset error must not exceed 3mm from the intended touch coordinate center.
-
Suite C: Hardware-in-the-Loop (HIL) Latency & State Synchronization
-
TC-LAT-01: Barcode / QR Scanner Read Latency
-
Target System State: Optical Scanner Engine → HMI OS Serial Bus integration.
-
Execution Methodology: 100 consecutive rapid QR code scans conducted across various mobile screen brightness levels.
-
Acceptance Threshold (Pass Criteria): Total elapsed time from physical optical beam acquisition to HMI visual state acknowledgement must remain < 150ms.
-
-
TC-LAT-02: Solenoid Lock Actuation Delay
-
Target System State: Signal transmission reaching the 12V / 24V mechanical solenoid lock actuator.
-
Execution Methodology: Measurement of latency between tapping the "Unlock Cell" button and physical latch release.
-
Acceptance Threshold (Pass Criteria): Visual State Lock: HMI display must instantly transition to an active locking state ("Unlocking Cell #14...") within < 50ms, with physical relay response completing within < 350ms.
-
-
TC-LAT-03: Input Debounce & Anti-Double-Tap Control
-
Target System State: Rapid repeated touch input mitigation (user double-clicking or force-tapping).
-
Execution Methodology: Execution of 10 rapid consecutive taps on primary confirmation buttons.
-
Acceptance Threshold (Pass Criteria): Software debounce logic must lock duplicate network API calls for a minimum window of 1500ms.
-
Suite D: Human Error Recovery & Accessibility Compliance
-
TC-ERR-01: Invalid PIN Input Recovery
-
Error Scenario: User inputs an incorrect 6-digit authorization code.
-
Recovery Mechanism: Immediate field reset, low-frequency auditory pulse (400Hz), and subtle horizontal field shake animation.
-
Acceptance Threshold (Pass Criteria): Total user recovery time prior to re-entering PIN must remain < 1.5 seconds. A dedicated "Clear Field" action button must remain persistently accessible.
-
-
TC-ERR-02: Abandoned Session Auto-Reset
-
Error Scenario: User departs the terminal area without closing the locker door or completing the session.
-
Recovery Mechanism: Ultrasonic/PIR proximity detection or inactivity timeout triggers session teardown.
-
Acceptance Threshold (Pass Criteria): 15-Second Countdown Timer triggers automatically, purging active session data and masking all personal information from display memory.
-
-
TC-ERR-03: Wheelchair Accessibility & Physical Reach
-
Error Scenario: Terminal interaction by wheelchair-seated users (physical reach height limits between 900mm and 1200mm).
-
Execution Methodology: Spatial audit of key interactive elements on 15.6'' and 21.5'' displays.
-
Acceptance Threshold (Pass Criteria): All primary operational controls must be anchored strictly at or below 1100mm from ground level, fully adhering to EN 301 549 standards.
-
Parcel Lockers
Interactive Hardware Configurator & Modular Customization Engine
1. System Context & B2B Engineering Value
To streamline enterprise sales and engineering handoffs for large-scale logistics clients (national postal services, commercial property managers, retail chains), I architected a web-based B2B Hardware Configurator.
This interactive application transformed a complex physical hardware procurement process into a real-time, visual configuration workflow. Enterprise buyers could build custom modular locker arrays, configure terminal hardware peripherals, test physical spatial layouts, and apply custom brand themes—generating accurate bill-of-materials (BOM) specs directly for the manufacturing team.
2. Key Interactive & HMI Features
-
3D/Visual Modular Assembly Engine: Built an interactive canvas allowing users to snap together main control units (Master Nodes with HMI touchscreens) and secondary extension columns (Slave Nodes with varying door size matrices—Small, Medium, Large, Extra-Large).
-
Environmental & Material Customization: Enabled real-time visual rendering of indoor vs. outdoor weather-resistant physical enclosures, including custom powder-coat color selection, metallic finishes, wood-grain panels, and solar canopy integrations.
-
Peripheral & Electronics Selector: Configured integrated hardware modules dynamically on the Master Node—including barcode/QR scanners, payment terminals, POS printers, surveillance cameras, and ambient canopy lighting.
-
Real-time Spatial Validation & Capacity Calculations: Automated physical dimensions ($Width \times Height \times Depth$) and total cell capacity counts dynamically as new modules were snapped into the array, preventing spatial layout mismatches before manufacturing.
-
3. Key Architectural Impact
-
Reduced Sales-to-Manufacturing Cycle Time: Eliminated manual CAD drafting and engineering spec iterations during early B2B sales cycles by generating real-time visual and technical hardware configurations.
-
Accelerated International Client Onboarding: Allowed global enterprise buyers (such as Georgian Post, Polish Post, and Middle Eastern logistics networks) to self-serve, visually test custom branding, and approve modular hardware layouts prior to physical production

E-Commerce Logistics Gateway &
Merchant Self-Service Portal (EcomGate)
1. System Architecture & B2B Integration Context
To connect e-commerce merchants, marketplace vendors, and third-party logistics (3PL) providers directly to OMNIC’s global hardware locker network, I architected the end-to-end user experience for EcomGate—an enterprise integration gateway and B2B self-service merchant platform.
EcomGate solved a critical industry challenge: eliminating complex, custom software integrations between disparate vendor ERP/WMS systems and physical parcel locker networks. By designing a standardized B2B self-service portal powered by an open API architecture, merchants gained instant access to automated locker fulfillment, parcel tracking, and network location selection.
2. Core Modules & B2B Dashboard Engineering
-
Merchant Personal Account (B2B SaaS Portal): Designed a high-density, web-based control center for online vendors to manage parcel dispatches, configure automated pickup notifications, handle returns, and audit delivery SLAs.
-
Real-Time Order Telemetry & Status Widgets: Engineered customizable dashboard widgets providing instant visual status tracking across thousands of active shipments (e.g., In Transit, Deposited in Locker, Overdue for Pickup, Returned to Vendor).
-
Interactive Network Location Topology (Map Engine): Developed a dynamic mapping interface allowing merchants and consumers to search, filter, and assign optimal parcel locker nodes based on real-time cell availability, operating hours, and physical location constraints.
-
Open API Integration UX & Merchant Onboarding: Structured the developer and merchant onboarding flow, providing clear API documentation, webhook setup tools, and automated sandbox testing environments to enable zero-friction integration for new e-commerce partners.
-
3. Measurable Impact & Enterprise Value
-
Zero-Friction Vendor Onboarding: Reduced 3PL and merchant integration time from weeks of custom software development to a single-day API deployment cycle.
-
Unified Logistics Interoperability: Created a single, standardized messaging and dispatch layer connecting thousands of online stores directly to national postal and private locker networks across Europe and the Middle East.
-
Reduced Support Dispatches: Live shipment telemetry widgets and automated status triggers reduced merchant-side customer support inquiries by over 50%, ensuring complete visibility throughout the last-mile delivery lifecycle.

Enterprise Network Operating System (OS) & Open Locker Network Ecosystem
1. System Context & Enterprise Architecture
To enable complete operational control for parcel locker network operators (national postal carriers, major logistics operators, and infrastructure owners), I architected the design for an end-to-end Enterprise Network Operating System.
This multi-tenant ecosystem centralized the management of thousands of autonomous hardware nodes into a single control plane. Beyond closed-network management, the architecture integrated BroadGate—an Open Network protocol and API middleware that transformed proprietary hardware networks into shared, agnostic last-mile infrastructure capable of serving multiple competing carriers (e.g., DHL, FedEx, national post) simultaneously.
2. Ecosystem Modules & Interface Design
-
Network Operator Command Center (Centralized Personal Account):
-
Real-Time Fleet Telemetry & Monitoring: High-density dashboards monitoring network-wide hardware health, cell occupancy ratios, power/connectivity uptime, and real-time fault diagnostics.
-
Process Automation & Remote Control: Configurable business logic engines for automated price tiers, dynamic cell allocation algorithms, remote lock overrides, and automated technician dispatch triggers.
-
Analytics & Reporting Engine: Advanced business intelligence tools generating granular operational reports on locker utilization, throughput velocity, peak pickup windows, and revenue analytics.
-
-
BroadGate Open Network Protocol & Partner Portal:
-
Carrier-Agnostic Interoperability: Standardized integration layer allowing third-party logistics (3PL) partners and carrier networks to dynamically query, reserve, and deposit packages into open network lockers via unified Open APIs.
-
Open Network Partner Dashboard: Dedicated portal for partner carriers to monitor their leased cell capacity, track multi-carrier delivery SLAs, and audit automated cross-billing records.
-
-
Field Execution & End-User Interfaces:
-
Courier Operations Mobile App (iOS/Android): Task-optimized field interface designed for rapid batch loading, drop-off verification, offline hardware override via Bluetooth/NFC, and automated door-opening sequences to minimize on-site delivery times.
-
Customer Terminal Touchscreen HMI: High-accessibility, intuitive hardware interface for end-users, optimized for high-contrast outdoor visibility, swift QR code scanning, contactless payments, and multi-language support.
-
-
3. Strategic Impact & Ecosystem Value
-
Network Utilization Maximization: BroadGate's open-network architecture increased physical locker cell occupancy rates by enabling multi-carrier usage across a single hardware footprint.
-
Proactive Fault Resolution: Real-time hardware telemetry and automated diagnostic alerts reduced on-site maintenance downtime by prioritizing technician dispatches based on automated error codes.
-
Turnkey Logistics Ecosystem: Provided network owners with a scalable software infrastructure capable of expanding from dozens to tens of thousands of self-service nodes without requiring manual system re-architecting.
